Fiber Optic Teeb Muaj yeeb yuj Meteor Teeb Khoom Rau Tsheb Headliner Star

Ntse lub hnub qub ru tsev

Installation txheej txheem ntawm lub hnub qub ru tsev

1. Tshem lub ru tsev;

2. Kos cov ntsiab lus;

3. Qhov tho qhov (1.0mm tshwj xeeb piercer);

4. Lub teeb lub taub hau yog muab tso rau hauv qhov chaw khoob;

5. Ntxig cov fiber ntau optical thiab npaj cov khoom siv kho qhov muag;

6. Kho qhov muag fiber ntau (kev tiv thaiv ib puag ncig silicone kua nplaum);

7. Muab cov paj rwb soundproof;

8. Txuas lub 12V fais fab mov kom pom tias nws tuaj yeem teeb;

9. Txiav cov fiber ntau optical (txiav mus txog 10cm ntawm lub qab nthab);

10. Txiav lub ru tsev optical fiber ca;

11. Qhov kawg tshwm sim.

Kauj Ruam 1: Tshem lub ru tsev

Tshem lub ru tsev sab hauv ntawm lub tsheb. Lub ru tsev yog tsau los ntawm buckles thiab screws. Ceev faj thaum tshem nws. (Tshem tawm A, B, C pillar trim panels, qhov rooj sab seals, tshem tawm sab laug thiab sab xis lub hnub ci, nyeem teeb, co-pilot thiab rear lub rooj zaum qab nthab.)

Kauj Ruam Ob: Kos Cov Ntsiab Lus

Tool: cwj mem loj;

Siv tus cwj mem loj los kos cov dots sib npaug, vim tias lub qhov nyias nyias, lub qab nthab thiab cov fiber ntau yog xim dawb, yog tias koj nrhiav tsis tau lub qhov, yog tias koj tsis kos dots, koj yuav nco qee qhov chaw. optical fiber tsis tau ntxig. Yog li kev kos duab yog qhov tseem ceeb.

Kauj ruam 3: tho (1.0mm piercer tshwj xeeb)

Cov cuab yeej: 1.0mm tshwj xeeb puncher;

Siv 1.0mm rab koob tshwj xeeb puncher rau tho qhov ntawm lub qab nthab, thiab tho ib lub qhov ntawm txhua qhov taw tes.

Yog tias koj xav ua qee cov duab, xws li lub hli, hnub qub, thiab lwm yam, koj tuaj yeem muab cov ntawv luam tawm tom qab lub qab nthab thiab ua raws li cov qauv ntawm cov qauv los ntxig cov fibers optical.

Kauj Ruam 4: Muab lub teeb lub taub hau tso rau hauv qhov chaw khoob

Ua ntej tshaj plaws, tso lub teeb lub taub hau rau ntawm qhov chaw uas muaj qhov chaw ntawm lub qab nthab (tsis txhob txhawb nqa nws mus rau lub qab nthab, nws tsis tuaj yeem ntsia tau), thiab kho nws nrog pob tshab kua nplaum.

Qee lub tsheb kuj tau muab tso rau ntawm tus ncej C, thiab qhov chaw rau txhua lub tsheb sib txawv, nyob ntawm lub tsheb.

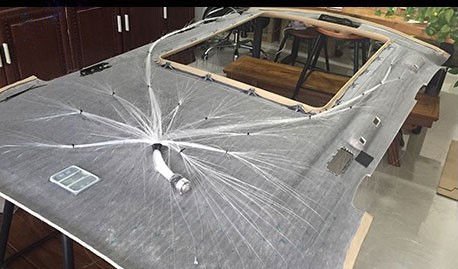

Kauj Ruam 5: Ntxig cov fiber ntau optical thiab teeb tsa cov fiber ntau optical

Cov cuab yeej: cable ties;

Faib cov khoom siv kho qhov muag rau hauv ob peb lub pob, shunt lub optical fiber kom tsis txhob cuam tshuam ntawm qhov kho qhov muag fiber ntau, thiab tom qab ntawd ntxig cov khoom siv kho qhov muag los ntawm ib qho los ntawm qhov ze kom deb li deb (txiav cov fiber ntau obliquely mus rau 45 degrees los pab txhawb kev ntxig ntawm qhov muag pom. fiber ntau), thiab rub cov fiber ntau optical mus rau qhov tsim nyog ntev.

Tom qab cov khoom siv kho qhov muag tau muab tso rau, npaj cov khoom siv kho qhov muag rau sab nraum qab kom tsis txhob muaj kev kub ntxhov. Tsuas yog tom qab tag nrho cov kho qhov muag fiber ntau yog npaj tau cov kua nplaum yuav glued.

Kauj Ruam 6: Kho qhov muag fiber ntau (ib puag ncig tus phooj ywg silicone kua nplaum)

Cov cuab yeej: 3150 ib puag ncig tus phooj ywg silicone kua nplaum;

Lub ntug ntxig rau hauv lub qhov fiber ntau yog kho nrog 3150 ib puag ncig tus phooj ywg silicone kua nplaum (nco ntsoov tsis txhob siv cov kua nplaum kub, 502 thiab lwm cov nplaum nplaum nplaum, uas yuav fuse cov fiber ntau), thiab tsis txhob khoov cov fiber ntau thaum thov kua nplaum, cia nws drip kua nplaum vertically.

Kauj Ruam 7: Muab cov paj rwb tsis muaj suab nrov

Cov cuab yeej: suab rwb thaiv tsev paj rwb, nailing tshuab;

Muab cov ntaub ntawv pov thawj suab pov tseg kom cais cov fiber ntau optical los ntawm cov ntawv hlau ntawm lub qab nthab, thiab siv lub tshuab nailing rau xuas nrig ntaus ib ncig ntawm lub suab-pov thawj paj rwb (ceev faj tsis txhob ntaus cov fiber ntau optical, los yog nws yuav cuam tshuam) los tiv thaiv cov optical fiber ntau thiab ntev lub neej ntawm cov fiber ntau optical. (Nws tsis pom zoo kom nruab lub skylight txoj hauj lwm)

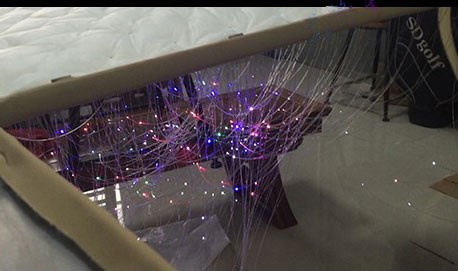

Kauj ruam 8: Txuas 12V fais fab mov kom pom tias nws tuaj yeem teeb

Cov cuab yeej: 12V fais fab mov;

Ua ntej txuas lub 12V fais fab mov sab nraum lub tsheb kom pom tias cov nyhuv tuaj yeem qhib.

Kev ceeb toom tshwj xeeb: lub tshuab fiber ntau optic yog 12V voltage, tsis txhob txuas rau 220V voltage los kuaj lub tshuab, nws yuav hlawv lub tshuab.

Kauj Ruam 9: Txiav cov fiber ntau optical (txiav mus txog 10cm ntawm lub qab nthab)

Cov cuab yeej: txiab;

Txiav lub optical fiber nyob rau hauv lub qab nthab txog li 10cm ntawm lub qab nthab.

Kauj Ruam 10: Txiav lub ru tsev Fiber

Cov cuab yeej: tshwj xeeb oblique txiab, lub tes tsho tshwj xeeb fiber ntau optic;

Thaum kawg, siv peb cov cutters tshwj xeeb oblique thiab lub tes tsho tshwj xeeb optical fiber ntau los npog txhua qhov kho qhov muag nrog lub tes tsho fiber ntau, thiab tom qab ntawd siv oblique cutters los txiav cov fibers optical rau lub ru tsev ntawm lub tsheb.

(Faj seeb: Kev saib xyuas tshwj xeeb yuav tsum tau them rau kev txiav cov fiber ntau kom tsis txhob txiav cov ntaub ntawm lub qab nthab)

Kauj Ruam 11: Cov nyhuv kawg
